Technical data
Bollards "BOCARO Light":
Type of protection: IP 66
Protection class: I
Impact protection: IK06
Bollard made of corrosion-resistant aluminum, seawater-resistant powder-coated. With fully enclosed stainless steel mounting base. LED protective cover toughened safety glass, clear. With mains voltage LED module. Junction box at base max. 2 x 3 x 2.5 mm² for through-wiring.
Available colours (X): 31 = anthracite, 4 = silver
Charging Bollards:
Type of protection: IP 54
Protection class: I
Impact protection: IK06 light unit, IK08 charge unit
Bollard made of corrosion-resistant, powder-coated aluminum with fully enclosed stainless steel mounting base. Seawater resistant coating.
Charging unit in separate box made of aluminum. Transparent plastic viewing window, to be opened via keyholes for checking/testing RCD and overvoltage protection.

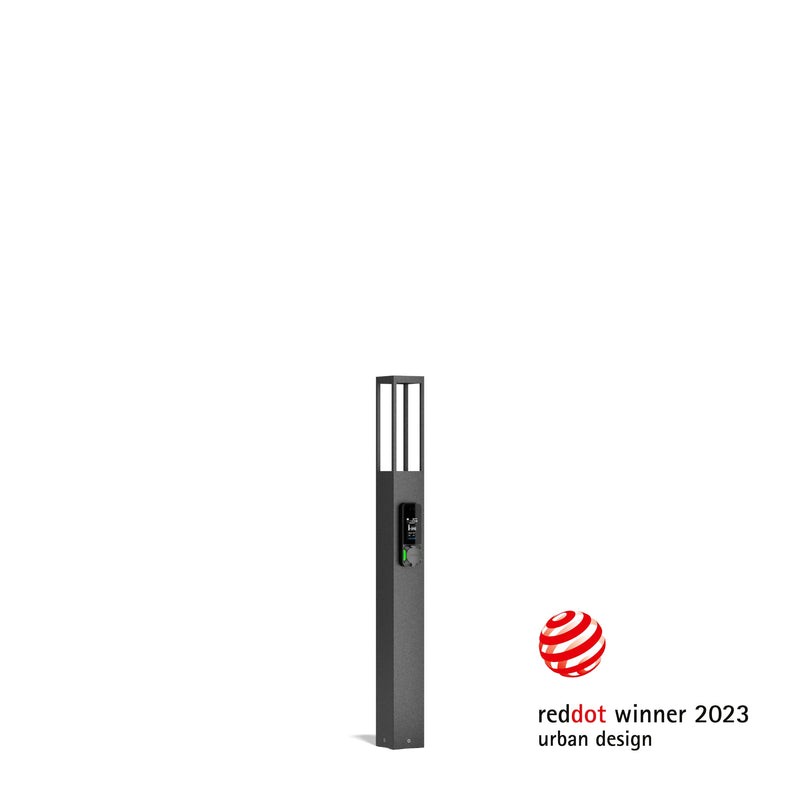

Light&Charge version:
LED protective cover ESG glass, clear. With mains voltage LED module. Light color 830. Photometric values like bollard luminaire BOCARO. Light color 840 available on request.
Dimensions [mm]: L 156, B 156, H 1560

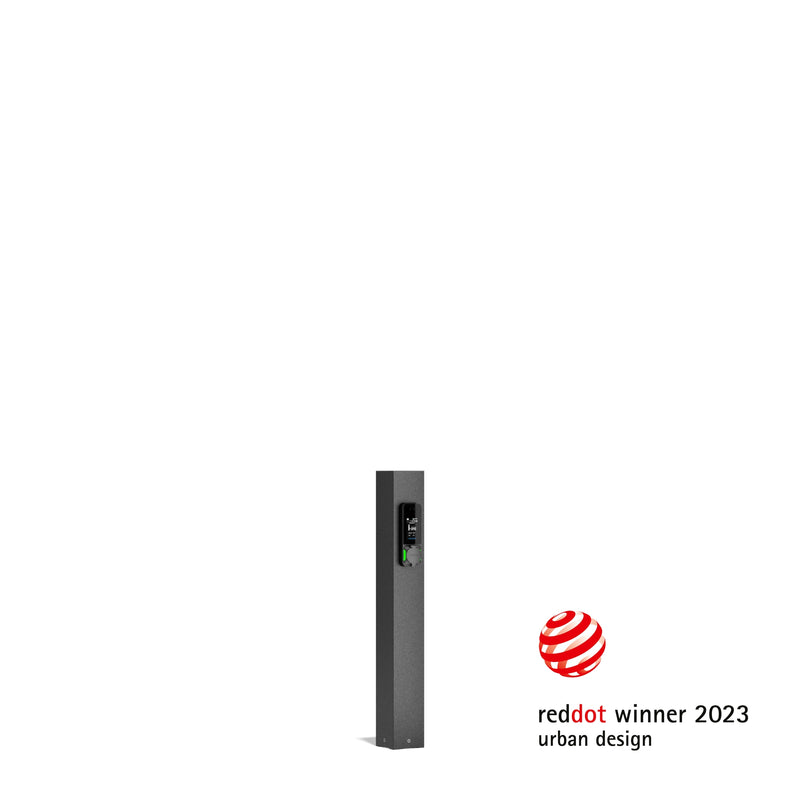

Charge version:
Dimensions [mm]: L 156, B 156, H 1150
Available colours: anthracite, silver
Standard scope of supply all variants: Charge controller, DC fault current detection, load protection, RFID scanner, LAN connection
Usefull links:

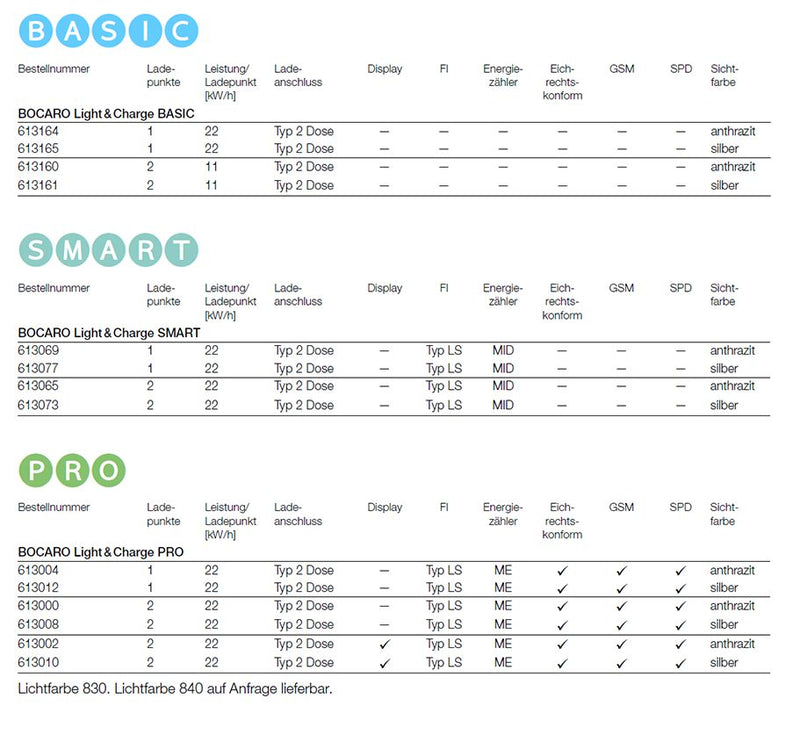

- Variant overview: BASIC, SMART, PRO
- Data sheets
- Brochure, Instructions, Commissioning manual
